SPI Protocol, SMD5050, 256 8 bit, 900nits
| Product Name | P55 Soft LED Mesh |

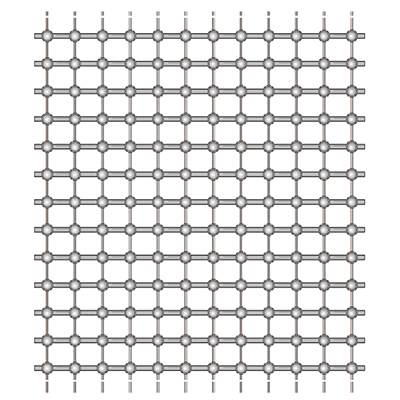

| Pixel Pitch | 55x55 mm |
| Color | RGB |
| Voltage | DC 12V |
| Protocol | SPI |
| Controller | Novastar or MR 218 |
| Ingress Protection | IP67 |
| Warranty | 2 years |

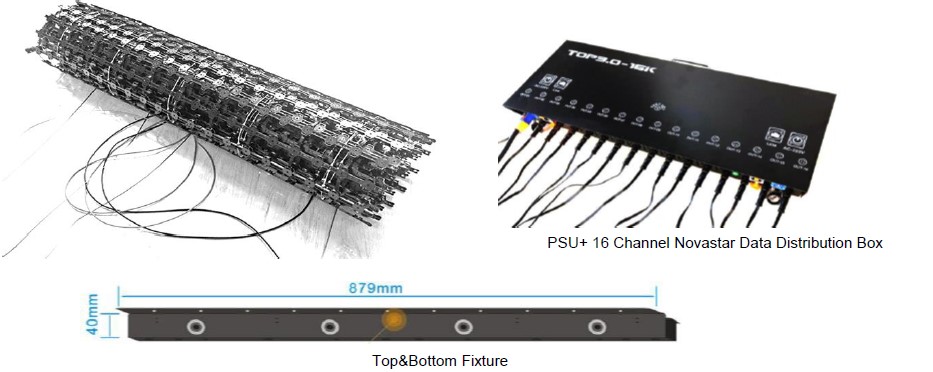

The Hardware Includes:

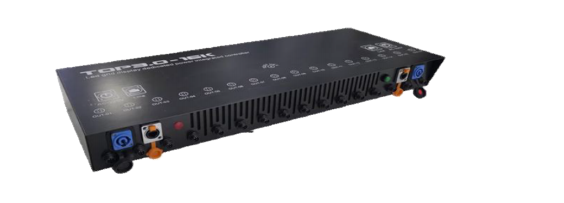

| Model | Voltage | Loading Capacity | Dimension | Weight |
|---|---|---|---|---|
| Top30.0-800W | 220 to 12V | P55 0.88x4m(w*h) | 670*270*85 mm | 7.5 KG |
| Top3.0-1600W | 220 to 12V | P55 0.88x 8m(w*h) | 670*270*85 mm | 8.6 KG |
| Top3.0-3200W | 220 to 12V | P55 0.88x16m(w*h) | 670*270*135 mm | 13.5 KG |
A: The pixel pitch is 55x55 mm, providing a balance between transparency and visual clarity.
A: Yes, it features an IP67 Ingress Protection rating, making it suitable for both indoor and outdoor environments.

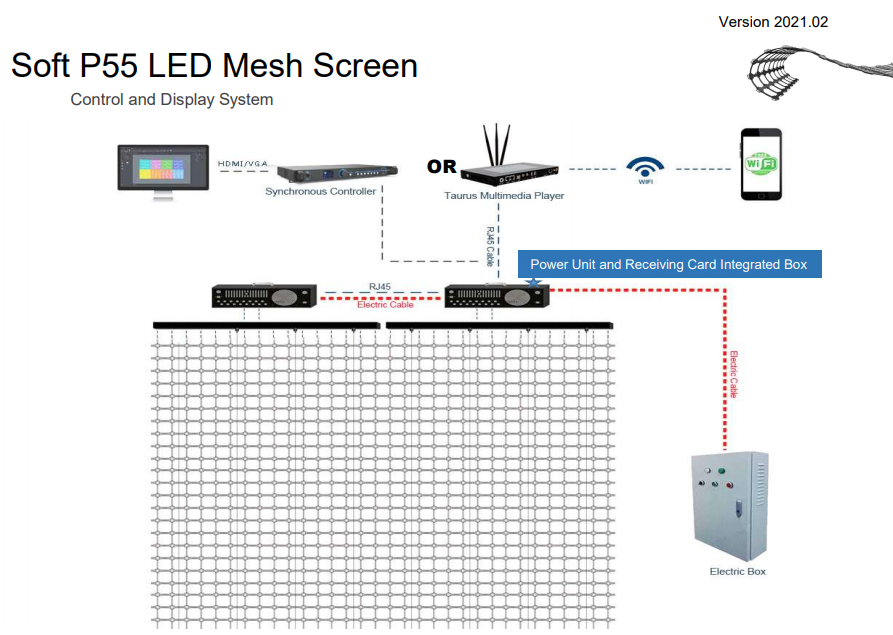

A: It uses the SPI Protocol and is compatible with Novastar or MR 218 controllers.

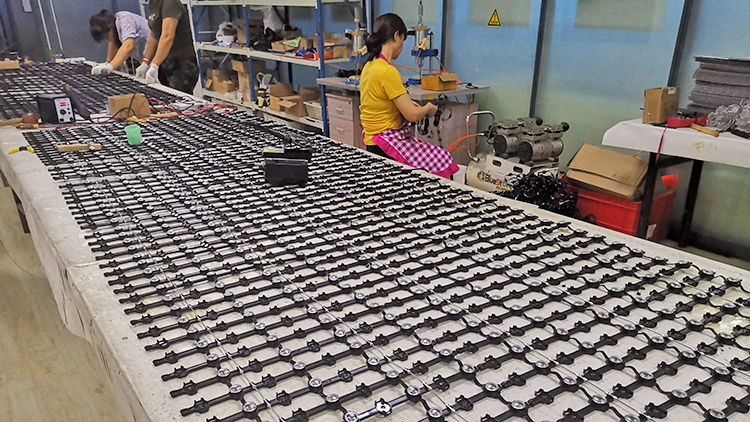

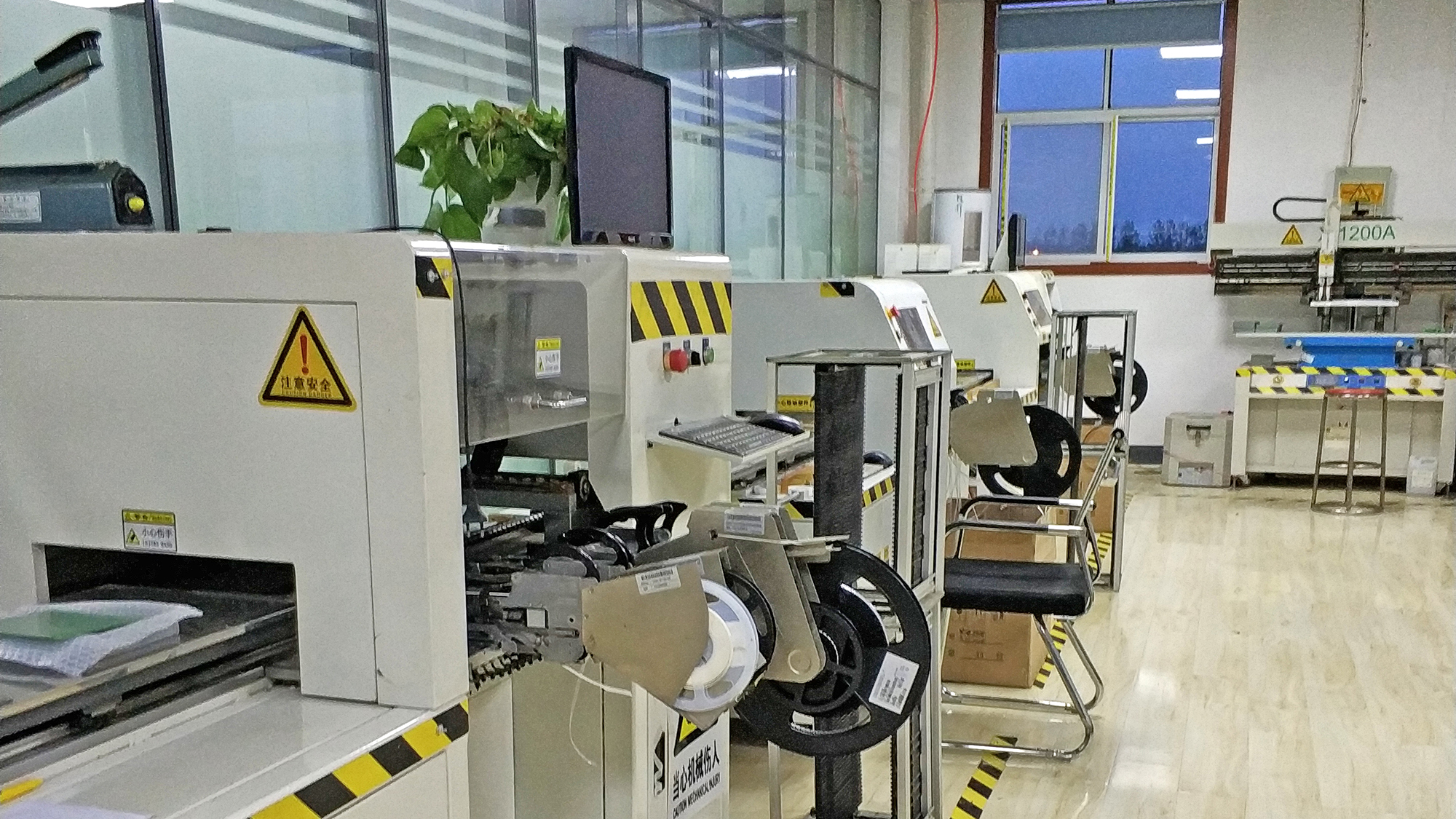

A: Every product undergoes a 24-hour aging test, followed by a double-check to replace any broken dots before delivery.
A: We provide a 2-year warranty for the P55 Soft LED Mesh system.

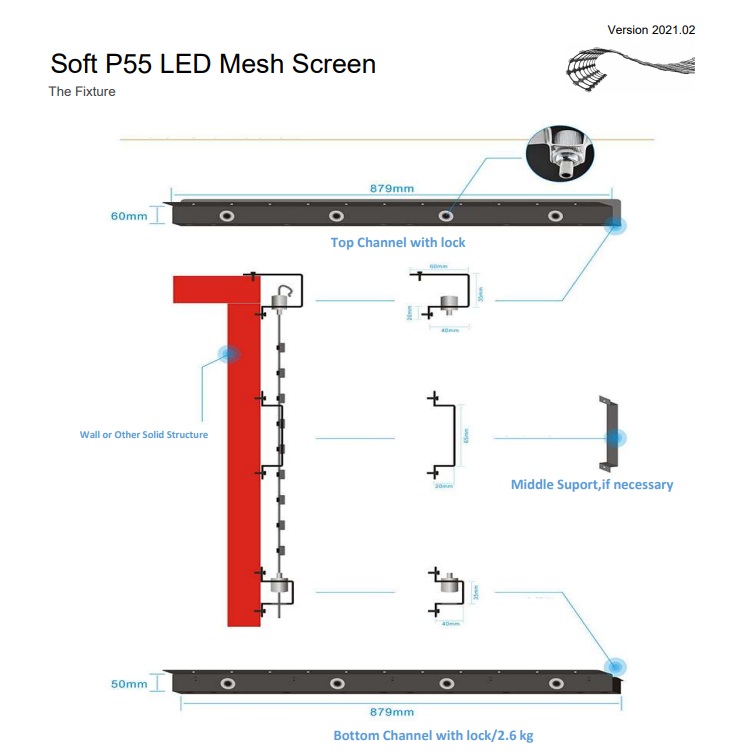

A: It supports wall or ceiling free-hanging installation using steel profiles and 2 mm wire cable locks at the top and bottom.
